Gate and Power Drivers IR2131STRPBF
Infineon

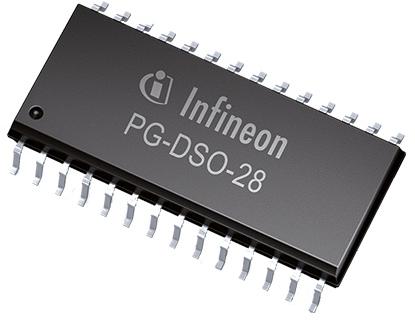

IR2131STRPBF
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.31.00.01 |
| PPAP | No |
| Type | IGBT|MOSFET |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 28 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Driver Type | High and Low Side |
| PCB changed | 28 |
| Part Status | Active |
| Package Width | 7.6(Max) |
| Package Height | 2.35(Max) |
| Package Length | 18.1(Max) |
| Special Features | Under Voltage Lockout |
| Supplier Package | SOIC W |
| Number of Drivers | 6 |
| Number of Outputs | 6 |
| Driver Configuration | Inverting |
| Reference Voltage (V) | 600(Max) |
| Standard Package Name | SOP |
| Maximum Fall Time (ns) | 100 |
| Maximum Rise Time (ns) | 150 |
| Input Logic Compatibility | CMOS|LSTTL|2.5V(Min) |
| Maximum Supply Current (mA) | 4.5 |
| High and Low Sides Dependency | Independent |
| Maximum Power Dissipation (mW) | 1600 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time (ns) | 2000 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 20 |
| Minimum Operating Supply Voltage (V) | 10 |
| Typical Input Low Threshold Voltage (V) | 0.8(Max) |
| Typical Input High Threshold Voltage (V) | 2.2(Min) |
| Description |
