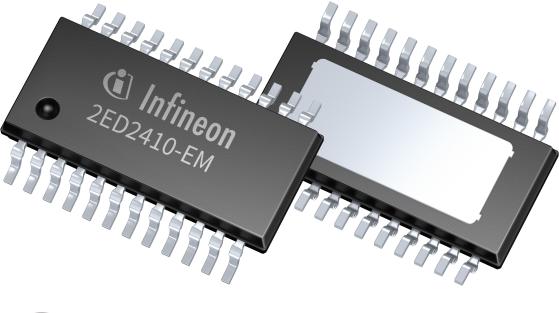

Gate and Power Drivers 2ED2410EMXUMA1
Infineon
2ED2410EMXUMA1
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| PPAP | Unknown |
| Type | MOSFET |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Pin Count | 24 |
| Automotive | Yes |
| Driver Type | High Side |
| PCB changed | 24 |
| Part Status | Active |
| Package Width | 3.9 |
| Package Height | 0.95 |
| Package Length | 8.65 |
| Supplier Package | TSDSO EP |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Driver Configuration | Inverting|Non-Inverting |
| Maximum Fall Time (ns) | 2000(Typ) |
| Maximum Rise Time (ns) | 7000(Typ) |
| Maximum Supply Current (mA) | 0.02 |
| Maximum Turn-On Delay Time (ns) | 4000(Typ) |
| Maximum Turn-Off Delay Time (ns) | 4000(Typ) |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Propagation Delay Time (ns) | 4000 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 58 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Input Low Threshold Voltage (V) | 0.7(Max) |
| Typical Input High Threshold Voltage (V) | 2.5(Min) |
| Description |
