Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| Type | NPN |
| EU RoHS | Compliant with Exemption |
| Material | Si |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Pin Count | 3 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 3 |
| Part Status | Obsolete |
| Configuration | Single |
| Package Width | 4.7(Max) |
| Package Height | 8.72(Max) |
| Package Length | 10.4(Max) |
| Product Category | Bipolar Power |

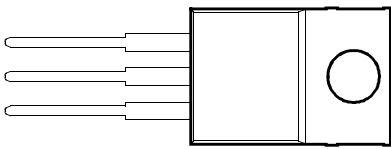

| Supplier Package | TO-220 |
| Standard Package Name | TO-220 |
| Minimum DC Current Gain | 20@0.5A@5V |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 75000 |
| Maximum DC Collector Current (A) | 4 |
| Maximum Emitter Base Voltage (V) | 10 |
| Maximum Collector Base Voltage (V) | 1100 |
| Maximum Transition Frequency (MHz) | 12(Typ) |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -65 |
| Maximum Collector-Emitter Voltage (V) | 500 |
| Maximum Base Emitter Saturation Voltage (V) | 1.2@0.4A@2A|1.4@0.6A@3A |
| Maximum Collector-Emitter Saturation Voltage (V) | 2.5@0.6A@3A |
| Description |
