Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | Unknown |
| SVHC | Yes |
| Type | NPN |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 4 |
| Automotive | Yes |
| PCB changed | 3 |
| Part Status | Active |
| Configuration | Single Dual Collector |
| Package Width | 2.6(Max) |
| Package Height | 1.6(Max) |
| Package Length | 4.6(Max) |
| Product Category | Bipolar Power |

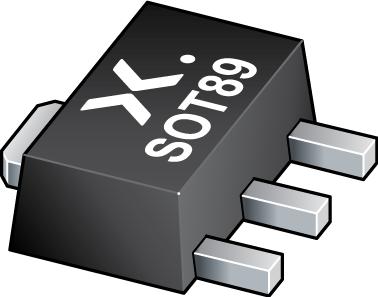

| Supplier Package | SOT-89 |
| Minimum DC Current Gain | 40@20mA@10V |
| Supplier Temperature Grade | Automotive |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 1300 |
| Maximum DC Collector Current (A) | 0.1 |
| Maximum Emitter Base Voltage (V) | 5 |
| Maximum Collector Base Voltage (V) | 400 |
| Maximum Transition Frequency (MHz) | 70(Min) |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -65 |
| Maximum Collector-Emitter Voltage (V) | 350 |
| Maximum Collector Cut-Off Current (nA) | 20 |
| Maximum Collector-Emitter Saturation Voltage (V) | 0.5@4mA@50mA |
| Description |
