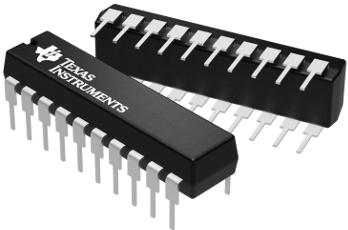

Flip Flops TPIC6B273N
Texas Instruments
TPIC6B273N
--
Standard and Specialty Logic
Flip Flops
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Through Hole |
| Polarity | Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 20 |
| Set/Reset | Master Reset |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Open Drain |
| PCB changed | 20 |
| Part Status | Active |
| Package Width | 6.6(Max) |
| Logic Function | D-Type Bus Interface |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 26.92(Max) |
| Triggering Type | Positive-Edge |
| Supplier Package | PDIP |
| Input Signal Type | Single-Ended |
| Process Technology | CMOS |
| Standard Package Name | DIP |
| Number of Element Inputs | 8 |
| Number of Element Outputs | 8 |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 150 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Propagation Delay Test Condition (pF) | 30 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 150(Typ)@5V |
| Description |
