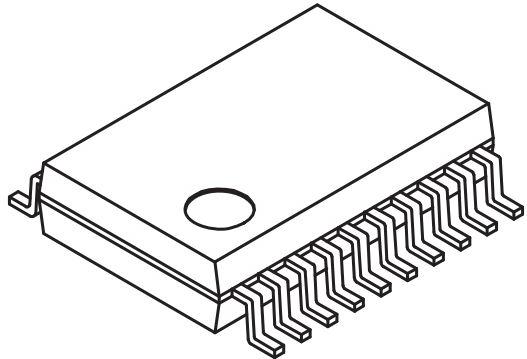

Flip Flops DM74ALS273MSA
onsemi
DM74ALS273MSA
--
Standard and Specialty Logic
Flip Flops
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.31.00.01 |
| PPAP | No |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Rail |
| Pin Count | 20 |
| Set/Reset | Master Reset |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 20 |
| Part Status | Obsolete |
| Logic Family | ALS |
| Package Width | 5.3 |
| Logic Function | D-Type Bus Interface |
| Package Height | 1.75 |
| Package Length | 7.2 |
| Triggering Type | Positive-Edge |
| Supplier Package | SSOP |
| Input Signal Type | Single-Ended |
| Process Technology | Bipolar |
| Standard Package Name | SOP |
| Number of Element Inputs | 8 |
| Number of Element Outputs | 8 |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Absolute Propagation Delay Time (ns) | 18 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 24 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -2.6 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 15@4.5V to 5.5V |
| Description |
