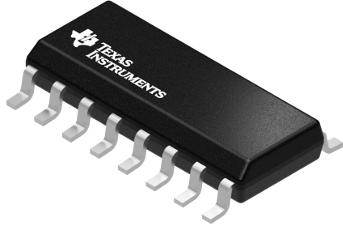

Flip Flops CD74ACT109ME4
Texas Instruments
CD74ACT109ME4
--
Standard and Specialty Logic
Flip Flops
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Inverting/Non-Inverting |
| ECCN (US) | EAR99 |
| Pin Count | 16 |
| Set/Reset | Set/Reset |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Push-Pull |
| PCB changed | 16 |
| Part Status | Active |
| Logic Family | ACT |
| Package Width | 4(Max) |
| Logic Function | JK# -Type |
| Package Height | 1.5(Max) |
| Package Length | 10(Max) |
| Triggering Type | Positive-Edge |
| Supplier Package | SOIC |
| Input Signal Type | Single-Ended |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Number of Element Inputs | 2 |
| Number of Element Outputs | 1 |
| Supplier Temperature Grade | Military |
| Number of Channels per Chip | 2 |
| Number of Elements per Chip | 2 |
| Maximum Quiescent Current (mA) | 0.004 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Absolute Propagation Delay Time (ns) | 12.2 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 24 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -24 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 10.3@5V |
