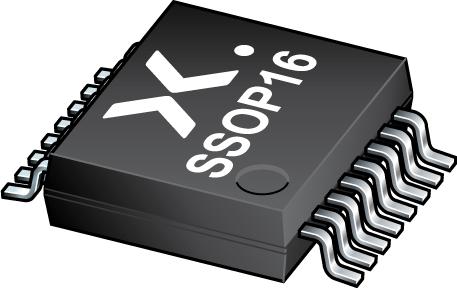

Flip Flops 74HCT174DB,118
Nexperia
74HCT174DB,118
--
Standard and Specialty Logic
Flip Flops
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Set/Reset | Master Reset |
| Automotive | No |
| PCB changed | 16 |
| Part Status | Obsolete |
| Logic Family | HCT |
| Package Width | 5.4(Max) |
| Logic Function | D-Type Bus Interface |
| Package Height | 1.8(Max) |
| Package Length | 6.4(Max) |
| Triggering Type | Positive-Edge |
| Supplier Package | SSOP |
| Input Signal Type | Single-Ended |
| Process Technology | CMOS |
| Number of Element Inputs | 6 |
| Number of Element Outputs | 6 |
| Number of Channels per Chip | 6 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (mA) | 0.008 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 53 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 4 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -4 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 35@4.5V |
| Description |
