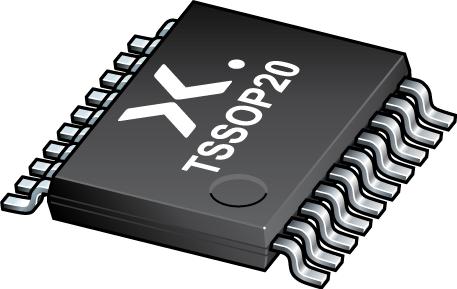

Flip Flops 74HC574PW-Q100,118
Nexperia
74HC574PW-Q100,118
--
Standard and Specialty Logic
Flip Flops
Specification
| Product Attribute | Attribute Value |
| PPAP | Unknown |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 20 |
| Automotive | Yes |
| Output Type | 3-State |
| PCB changed | 20 |
| Part Status | Active |
| Logic Family | HC |
| Package Width | 4.5(Max) |
| Logic Function | D-Type Bus Interface |
| Package Height | 0.95(Max) |
| Package Length | 6.6(Max) |
| Triggering Type | Positive-Edge |
| Supplier Package | TSSOP |
| Input Signal Type | Single-Ended |
| Process Technology | CMOS |
| Number of Element Inputs | 8 |
| Number of Element Outputs | 8 |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (mA) | 0.008 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 225 |
| Maximum Operating Supply Voltage (V) | 6 |
| Minimum Operating Supply Voltage (V) | 2 |
| Number of Output Enables per Element | 1 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 7.8 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -7.8 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 150@2V|30@4.5V|26@6V |
| Description |
