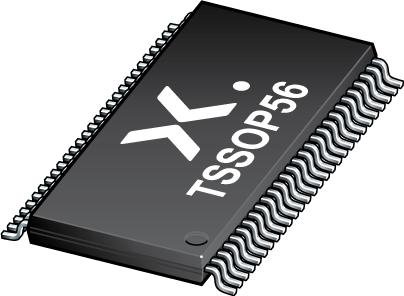

Flip Flops 74ALVCH16821DGG:11
Nexperia
74ALVCH16821DGG:11
--
Standard and Specialty Logic
Flip Flops
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Bus Hold | Yes |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 56 |
| Automotive | No |
| Output Type | 3-State |
| PCB changed | 56 |
| Part Status | Obsolete |
| Logic Family | ALVC |
| Package Width | 6.2(Max) |
| Logic Function | D-Type Bus Interface |
| Package Height | 1.05(Max) |
| Package Length | 14.1(Max) |
| Triggering Type | Positive-Edge |
| Supplier Package | TSSOP |
| Input Signal Type | Single-Ended |
| Process Technology | CMOS |
| Number of Element Inputs | 10 |
| Number of Element Outputs | 10 |
| Number of Channels per Chip | 20 |
| Number of Elements per Chip | 2 |
| Maximum Quiescent Current (mA) | 0.0002(Typ) |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 6.6 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 2.3 |
| Number of Output Enables per Element | 1 |
| Typical Operating Supply Voltage (V) | 3.3|2.5 |
| Maximum Low Level Output Current (mA) | 24 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -24 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 2.5(Typ)@3.3V|2.8(Typ)@2.7V |
| Description |
