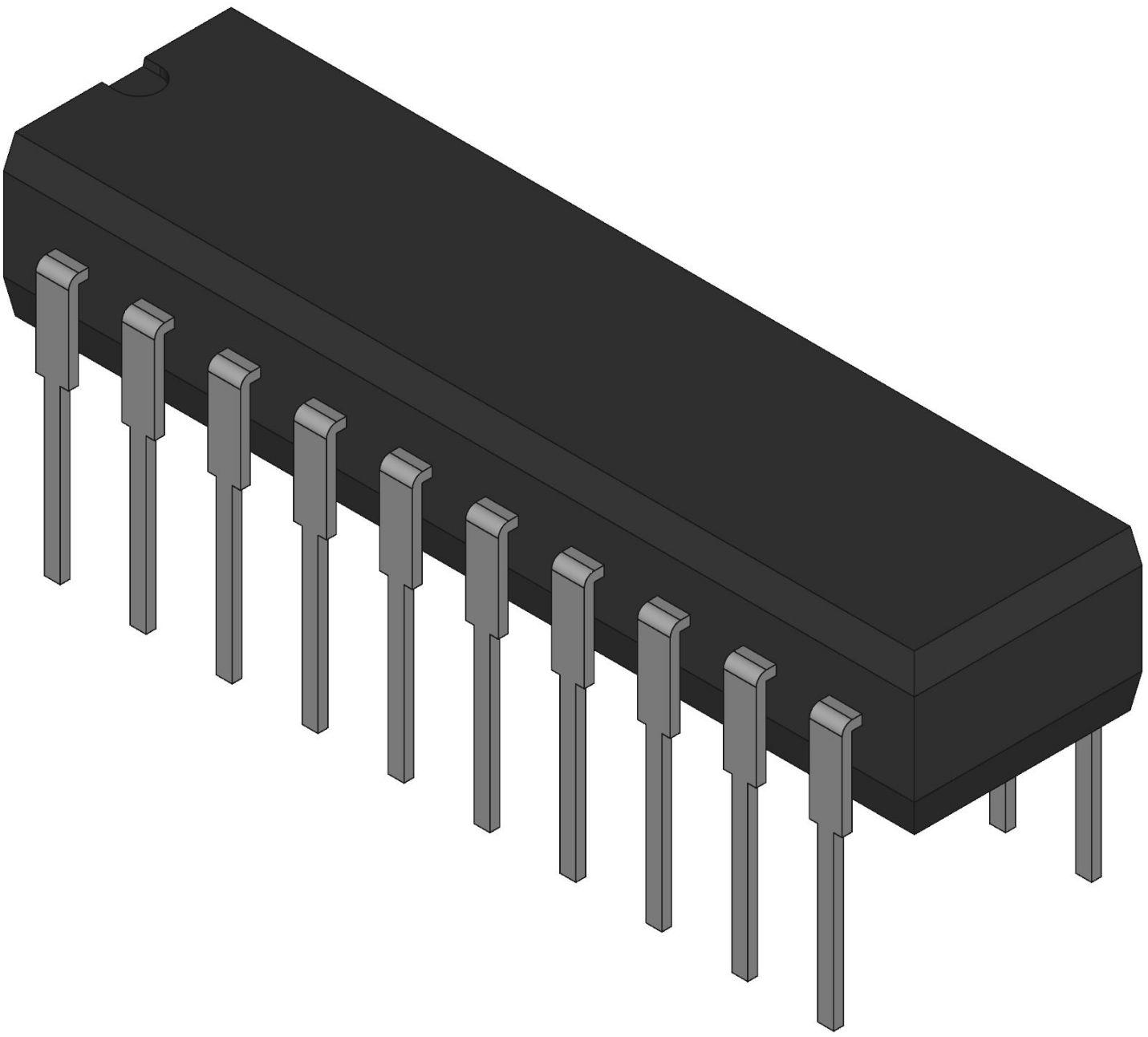

Flip Flops 5962-9583201QRA
Texas Instruments
5962-9583201QRA
--
Standard and Specialty Logic
Flip Flops
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Not Compliant |
| Bus Hold | Yes |
| Mounting | Through Hole |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | 3-State |
| PCB changed | 20 |
| Part Status | Obsolete |
| Logic Family | LVT |
| Package Width | 7.62(Max) |
| Logic Function | D-Type Bus Interface |
| Package Height | 3.56(Max) |
| Package Length | 26.92(Max) |
| Triggering Type | Positive-Edge |
| Supplier Package | CDIP |
| Input Signal Type | Single-Ended |
| Process Technology | BiCMOS |
| Standard Package Name | DIP |
| Number of Element Inputs | 8 |
| Number of Element Outputs | 8 |
| Supplier Temperature Grade | Military |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (mA) | 5 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Absolute Propagation Delay Time (ns) | 6.5 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 2.7 |
| Number of Output Enables per Element | 1 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Low Level Output Current (mA) | 48 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -24 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 5.9@2.7V|4.9@3.3V |
| Description |
