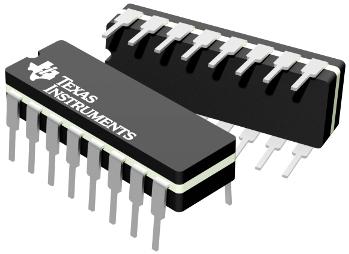

Flip Flops 5962-8974301EA
Texas Instruments
5962-8974301EA
--
Standard and Specialty Logic
Flip Flops
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Not Compliant |
| Bus Hold | No |
| Mounting | Through Hole |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Set/Reset | Master Reset |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 16 |
| Part Status | Active |
| Logic Family | HCT |
| Package Width | 7.62(Max) |
| Logic Function | D-Type Bus Interface |
| Package Height | 3.56(Max) |
| Package Length | 21.34(Max) |
| Triggering Type | Positive-Edge |
| Supplier Package | CDIP |
| Input Signal Type | Single-Ended |
| Process Technology | CMOS |
| Standard Package Name | DIP |
| Number of Element Inputs | 6 |
| Number of Element Outputs | 6 |
| Supplier Temperature Grade | Military |
| Number of Channels per Chip | 6 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (mA) | 0.008 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Absolute Propagation Delay Time (ns) | 66 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 4 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -4 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 40@4.5V |
| Description |
