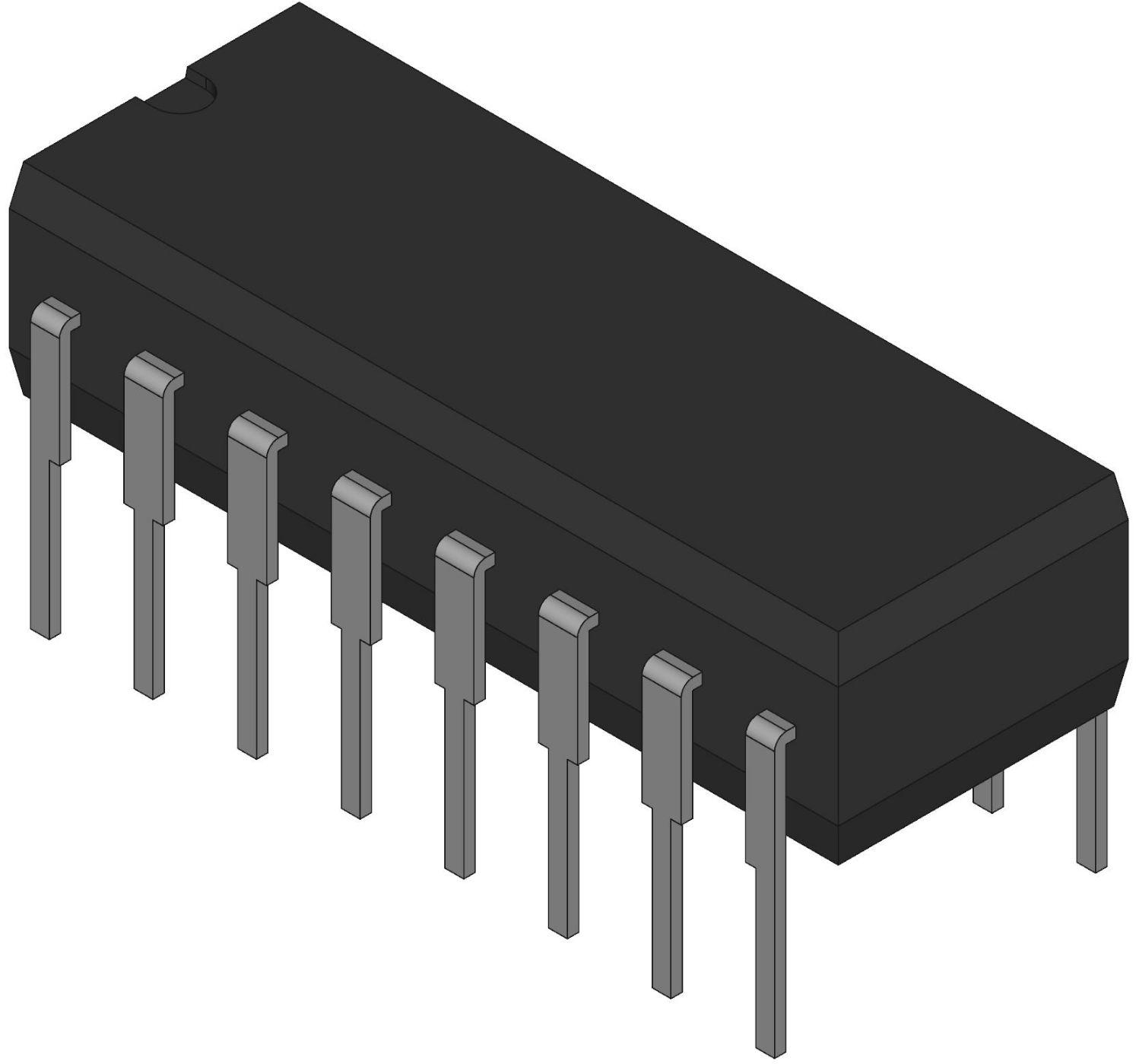

Encoders M74HC147B1R
STMicroelectronics
M74HC147B1R
--
Standard and Specialty Logic
Encoders
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.32.00.71 |
| PPAP | No |
| Type | Priority |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 16 |
| Part Status | Obsolete |
| Logic Family | HC |
| Package Width | 7.1(Max) |
| Package Height | 5.1(Max) - 0.51(Min) |
| Package Length | 20(Max) |
| Supplier Package | PDIP |
| Process Technology | CMOS |
| Standard Package Name | DIP |
| Number of Encoded Keys | 0 |
| Output Drive Capability | -5.2mA/5.2mA |
| Clock Controlling Signal | No |
| Number of Element Inputs | 9 |
| Number of Element Outputs | 4 |
| Maximum Power Dissipation (mW) | 500 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Number of Input Enables per Element | 0 |
| Absolute Propagation Delay Time (ns) | 225 |
| Maximum Operating Supply Voltage (V) | 6 |
| Minimum Operating Supply Voltage (V) | 2 |
| Number of Output Enables per Element | 0 |
| Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 125@2V|30@4.5V|26@6V |
| Description |
