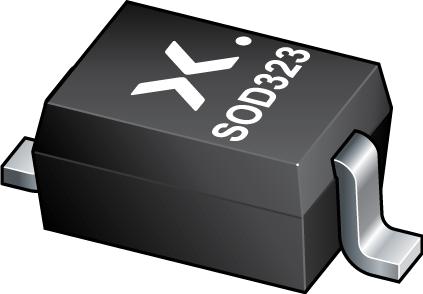

ESD Suppressors PESD12VS1UA,115
Nexperia
PESD12VS1UA,115
--
Circuit Protection
ESD Suppressors
Specification
| Product Attribute | Attribute Value |
| HTS | 8541.10.00.80 |
| PPAP | Unknown |
| SVHC | Yes |
| Type | TVS |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 2 |
| Automotive | Yes |
| PCB changed | 2 |
| Part Status | Active |
| Configuration | Single |
| Package Width | 1.35(Max) |
| Direction Type | Uni-Directional |
| Package Height | 1.05(Max) |
| Package Length | 1.8(Max) |
| Supplier Package | SOD-323 |
| Test Current (mA) | 5 |
| Standard Package Name | SOD |
| Capacitance Value (pF) | 180 |
| Supplier Temperature Grade | Automotive |
| Maximum Working Voltage (V) | 12 |
| Number of Elements per Chip | 1 |
| Maximum Clamping Voltage (V) | 27 |
| Maximum Leakage Current (uA) | 0.1 |
| Maximum Breakdown Voltage (V) | 15.75 |
| Minimum Breakdown Voltage (V) | 13.3 |
| Maximum Peak Pulse Current (A) | 22.5 |
| Maximum Power Dissipation (mW) | 500 |
| Peak Pulse Power Dissipation (W) | 600 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Description |
