Specification
| Product Attribute | Attribute Value |
| PPAP | Unknown |
| SVHC | Yes |
| Type | TVS |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 6 |
| Automotive | Yes |
| PCB changed | 6 |
| Part Status | Active |
| Configuration | Quad Common Anode |
| Package Width | 1.7(Max) |
| Direction Type | Uni-Directional |
| Package Height | 1(Max) |
| Package Length | 3.1(Max) |

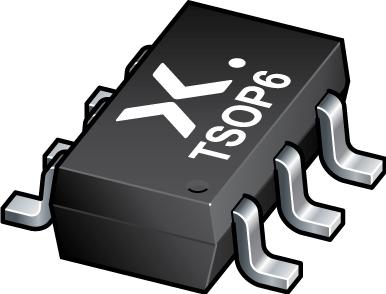

| Supplier Package | TSOP |
| Test Current (mA) | 1 |
| Fail Safe Protection | No |
| Capacitance Value (pF) | 240 |
| Supplier Temperature Grade | Automotive |
| Maximum Working Voltage (V) | 3 |
| Number of Elements per Chip | 4 |
| Maximum Clamping Voltage (V) | 8 |
| Maximum Leakage Current (uA) | 2 |
| Maximum Breakdown Voltage (V) | 5.88 |
| Minimum Breakdown Voltage (V) | 5.32 |
| Maximum Peak Pulse Current (A) | 3 |
| Maximum Power Dissipation (mW) | 720 |
| Peak Pulse Power Dissipation (W) | 24 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -65 |
| Description |
