Discrete Semiconductor Products UPA2826T1S-E2-AT
Renesas Electronics

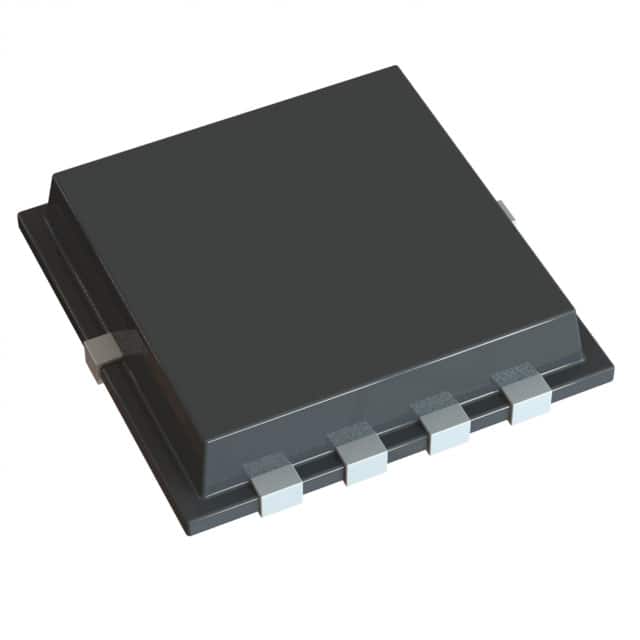

UPA2826T1S-E2-AT
--
other
Discrete Semiconductor Products
Specification
| Product Attribute | Attribute Value |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| FET Type | N-Channel |
| Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Product Status | Active |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA |
| Operating Temperature | 150°C |
| Rds On (Max) @ Id, Vgs | 4.3mOhm @ 13.5A, 8V |
| Power Dissipation (Max) | 20W (Ta) |
| Supplier Device Package | 8-HWSON (3.3x3.3) |
| Gate Charge (Qg) (Max) @ Vgs | 37 nC @ 4 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3610 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 8V |
| Current - Continuous Drain (Id) @ 25°C | 27A (Ta) |
| Description |
