Discrete Semiconductor Products RJH60A81RDPD-A0#J2
Renesas Electronics
RJH60A81RDPD-A0#J2
--
other
Discrete Semiconductor Products
Specification
| Product Attribute | Attribute Value |
| Package | Tape & Reel (TR) |
| IGBT Type | Trench |
| Input Type | Standard |
| Gate Charge | 11 nC |
| Power - Max | 29.4 W |
| Mounting Type | Surface Mount |

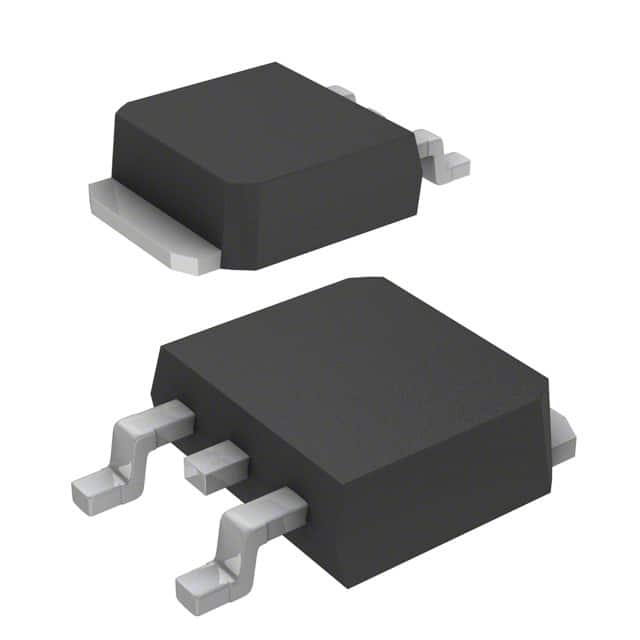

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Product Status | Obsolete |
| Test Condition | 300V, 5A, 5Ohm, 15V |
| Switching Energy | 130µJ (on), 60µJ (off) |
| Td (on/off) @ 25°C | 30ns/40ns |
| Operating Temperature | 150°C (TJ) |
| Supplier Device Package | TO-252 |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 5A |
| Reverse Recovery Time (trr) | 100 ns |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Description |
