Discrete Semiconductor Products 2SK3813-AZ
Renesas Electronics

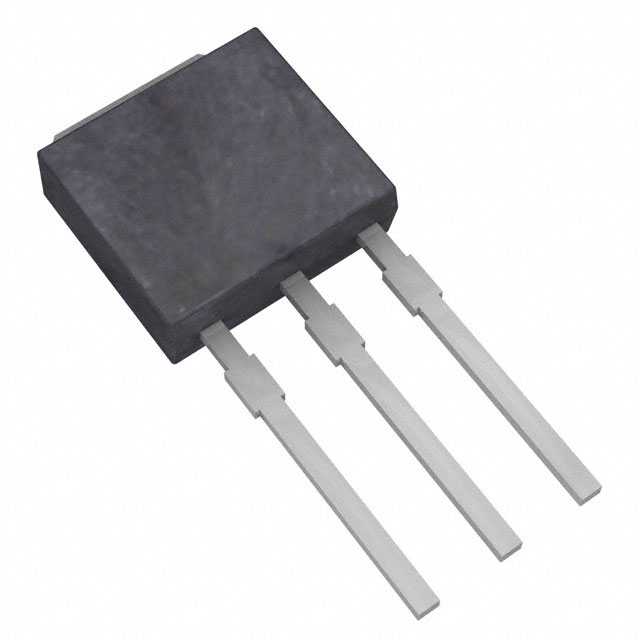

2SK3813-AZ
--
other
Discrete Semiconductor Products
Specification
| Product Attribute | Attribute Value |
| Package | Bulk |
| FET Type | N-Channel |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Through Hole |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Product Status | Obsolete |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 5.3mOhm @ 30A, 10V |
| Power Dissipation (Max) | 1W (Ta), 84W (Tc) |
| Supplier Device Package | TO-251 |
| Gate Charge (Qg) (Max) @ Vgs | 96 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 40 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5500 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Ta) |
| Description |
