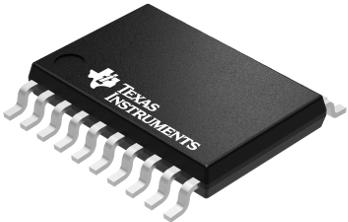

PCM5100PW
PCM5100PW
Digital to Analog Converters - DACs PCM5100PW
Texas Instruments
PCM5100PW
--
Data Acquisition
Digital to Analog Converters - DACs
Specification
Product AttributeAttribute Value
HTS8542330001
PPAPNo
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingBulk
Pin Count20
AutomotiveNo
Lead ShapeGull-wing
Resolution32bit
Output TypeVoltage
PCB changed20
Part StatusNRND
ArchitectureSegment
Package Width4.5(Max)
Converter TypeAudio
Package Height1.05(Max)
Package Length6.6(Max)
Conversion Rate384ksps
Output PolarityUnipolar
Full Scale Error±6%FSR
Supplier PackageTSSOP
Power Supply TypeAnalog and Digital
Signal to Noise Ratio100dB
Standard Package NameSOP
Digital Interface TypeSerial (3-Wire)
Digital Supply SupportYes
Number of DAC Channels2
Number of Outputs per Chip2
Maximum Power Dissipation (mW)185
Maximum Single Supply Voltage (V)3.6
Minimum Single Supply Voltage (V)3
Typical Single Supply Voltage (V)3.3
Maximum Operating Temperature (°C)85
Minimum Operating Temperature (°C)-25
Description
DAC 2-CH Segment 32-bit 20-Pin TSSOP Bulk
