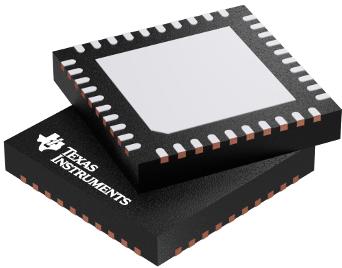

Digital to Analog Converters - DACs DAC7716SRHAR
Texas Instruments
DAC7716SRHAR
--
Data Acquisition
Digital to Analog Converters - DACs
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 40 |
| Automotive | No |
| Lead Shape | No Lead |
| Resolution | 12bit |
| Output Type | Voltage |
| PCB changed | 40 |
| Part Status | Active |
| Architecture | R-2R |
| Package Width | 6.15(Max) |
| Converter Type | General Purpose |
| Package Height | 0.95(Max) |
| Package Length | 6.15(Max) |
| Conversion Rate | 125ksps |
| Output Polarity | Bipolar|Unipolar |
| Full Scale Error | ±0.5LSB |
| Supplier Package | VQFN EP |
| Power Supply Type | Dual |
| Voltage Reference | External |
| Standard Package Name | QFN |
| Digital Interface Type | Serial (3-Wire, SPI, QSPI, Microwire) |
| Digital Supply Support | Yes |
| Number of DAC Channels | 4 |
| Maximum Settling Time (us) | 7(Typ) |
| Number of Outputs per Chip | 4 |
| Integral Nonlinearity Error | ±1LSB |
| Maximum Power Dissipation (mW) | 290(Typ) |
| Maximum Dual Supply Voltage (V) | -18/24 |
| Minimum Dual Supply Voltage (V) | ±4.75 |
| Typical Dual Supply Voltage (V) | ±15|±12|±9|±5 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
