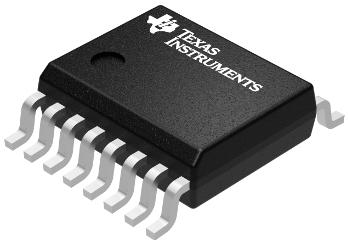

DAC1221EG4
DAC1221EG4
Digital to Analog Converters - DACs DAC1221EG4
Texas Instruments
DAC1221EG4
--
Data Acquisition
Digital to Analog Converters - DACs
Specification
Product AttributeAttribute Value
PPAPNo
SVHCYes
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTube
Pin Count16
AutomotiveNo
Lead ShapeGull-wing
Resolution16bit
Output TypeVoltage
PCB changed16
Part StatusObsolete
ArchitectureDelta-Sigma
Package Width4(Max)
Converter TypeGeneral Purpose
Package Height1.5(Max)
Package Length5(Max)
Conversion Rate500sps
Output PolarityUnipolar
Full Scale Error0.015%FSR
Supplier PackageSSOP
Power Supply TypeAnalog and Digital
Voltage ReferenceExternal
Standard Package NameSOP
Digital Interface TypeSerial (2-Wire)
Digital Supply SupportYes
Number of DAC Channels1
Maximum Settling Time (us)2000
Number of Outputs per Chip1
Integral Nonlinearity Error±30ppm of FSR
Maximum Power Dissipation (mW)1.6
Maximum Single Supply Voltage (V)3.3
Minimum Single Supply Voltage (V)2.7
Typical Single Supply Voltage (V)3
Maximum Operating Temperature (°C)85
Minimum Operating Temperature (°C)-40
Description
DAC 1-CH Delta-Sigma 16-bit 16-Pin SSOP Tube
