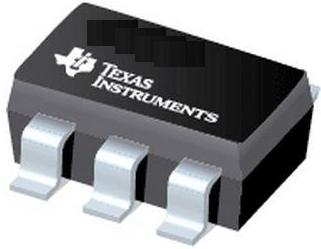

Digital Isolators ISO722MDRG4
Texas Instruments
ISO722MDRG4
--
Drivers and Interfaces
Digital Isolators
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | General Purpose |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Logic |
| PCB changed | 8 |
| Part Status | Active |
| Coupling Type | Capacitive Coupling |
| Package Width | 3.98(Max) |
| Package Height | 1.5(Max) |
| Package Length | 5(Max) |
| Supplier Package | SOIC |
| Maximum Data Rate | 150Mbps |
| Standard Package Name | SOP |
| Maximum Fall Time (ns) | 2(Typ) |
| Maximum Rise Time (ns) | 2(Typ) |
| Forward/Reverse Channels | 1/0 |
| Number of Channels per Chip | 1 |
| Maximum Power Dissipation (mW) | 195 |
| Minimum Isolation Voltage (Vrms) | 2500 |
| Maximum Output Current Drive (mA) | 15 |
| Maximum Working Insulation Voltage | 560Vp |
| Maximum ESD Protection Voltage (kV) | ±1@CDM/±2@HBM |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Pulse Width Distortion (ns) | 1 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3|5 |
| Maximum Quiescent Supply Current (mA) | 12 |
| Minimum Common Mode Rejection (kV/us) | 25 |
| Maximum Propagation Delay Time (tPHL) (ns) | 16 |
| Maximum Propagation Delay Time (tPLH) (ns) | 16 |
| Description |
