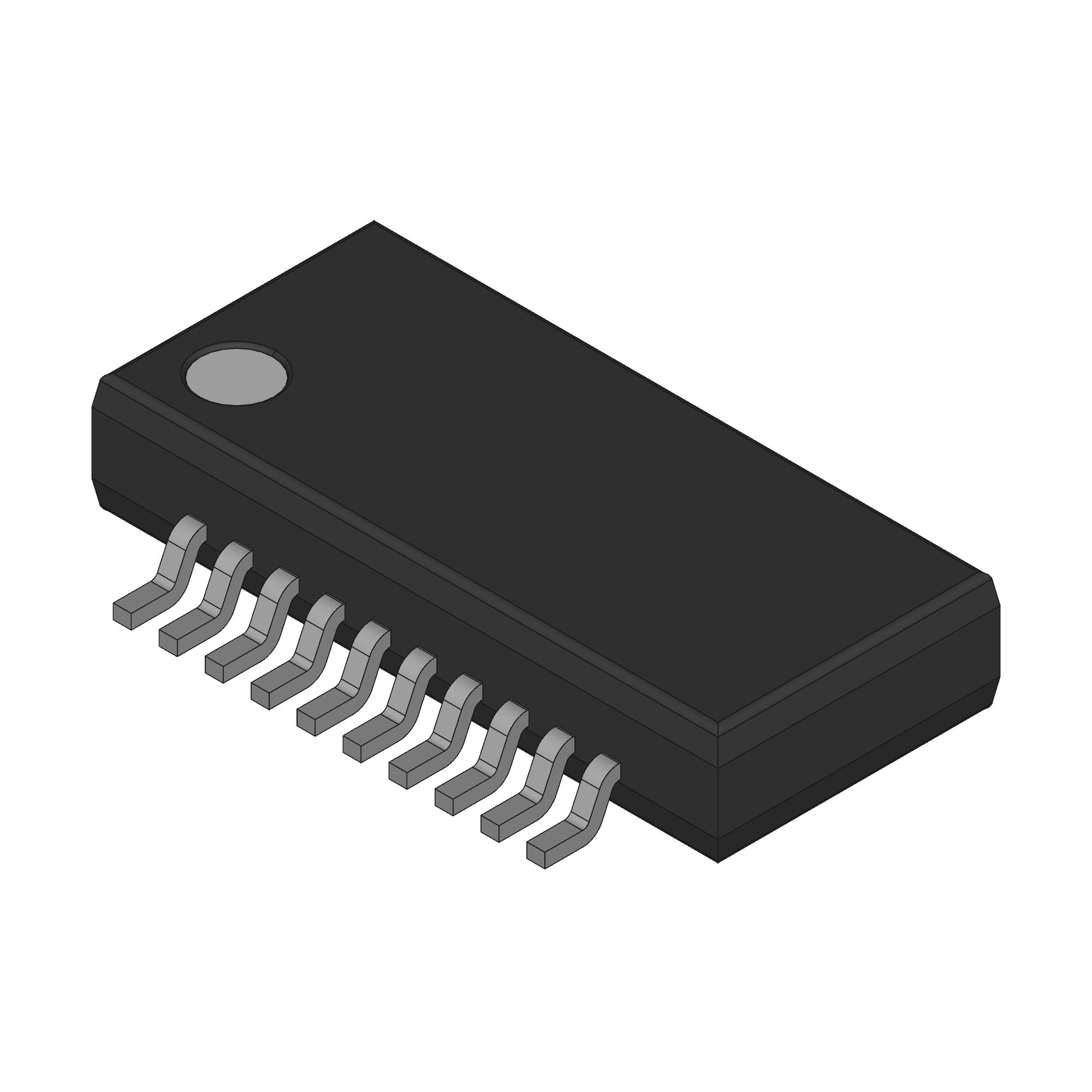

Digital Isolators ADUM7642ARQZ-RL7
ADI
ADUM7642ARQZ-RL7
--
Drivers and Interfaces
Digital Isolators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| Type | General Purpose |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 20 |
| Part Status | Active |
| Coupling Type | Magnetic Coupling |
| Package Width | 3.91 |
| Package Height | 1.65(Max) |
| Package Length | 8.66 |
| Supplier Package | QSOP |
| Maximum Data Rate | 1Mbps |
| Standard Package Name | SOP |
| Maximum Fall Time (ns) | 2(Typ) |
| Maximum Rise Time (ns) | 2(Typ) |
| Forward/Reverse Channels | 4/2 |
| Minimum Pulse Width (ns) | 250 |
| Number of Channels per Chip | 6 |
| Minimum Isolation Voltage (Vrms) | 1000 |
| Maximum Working Insulation Voltage | 420Vp |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Propagation Delay Skew (ns) | 20 |
| Maximum Pulse Width Distortion (ns) | 75 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 3 |
| Maximum Quiescent Supply Current (mA) | 1.16/0.98 |
| Minimum Common Mode Rejection (kV/us) | 15 |
| Maximum Propagation Delay Time (tPHL) (ns) | 20 |
| Maximum Propagation Delay Time (tPLH) (ns) | 20 |
| Description |
