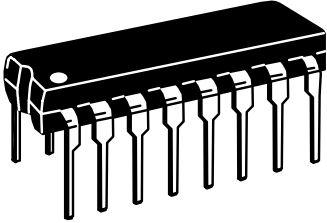

Decoders and Demuxes SN74LS48N
onsemi
SN74LS48N
--
Standard and Specialty Logic
Decoders and Demuxes
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Rail |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 16 |
| Part Status | Obsolete |
| Logic Family | LS |
| Package Width | 7.11(Max) |
| Logic Function | Decoder/Driver |
| Package Height | 4.95(Max) |
| Package Length | 19.69(Max) |
| Supplier Package | PDIP |
| Process Technology | Bipolar |
| Standard Package Name | DIP |
| Number of Element Inputs | 4 |
| Number of Element Outputs | 7 |
| Supplier Temperature Grade | Commercial |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Number of Input Enables per Element | 0 |
| Number of Output Enables per Element | 0 |
| Maximum Low Level Output Current (mA) | 6 |
| Propagation Delay Test Condition (pF) | 15 |
| Maximum High Level Output Current (mA) | -0.1 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 100@5V |
| Description |
