Decoders and Demuxes HEF4543BT,653
Nexperia

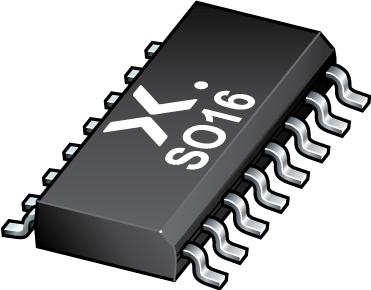

HEF4543BT,653
--
Standard and Specialty Logic
Decoders and Demuxes
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | Unknown |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Automotive | Unknown |
| PCB changed | 16 |
| Part Status | Active |
| Logic Family | HEF4000 |
| Package Width | 4(Max) |
| Logic Function | Latch/Decoder/Driver |
| Package Height | 1.45(Max) |
| Package Length | 10(Max) |
| Supplier Package | SO |
| Process Technology | CMOS |
| Number of Element Inputs | 4 |
| Number of Element Outputs | 7 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (mA) | 0.08 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Input Enables per Element | 1 |
| Absolute Propagation Delay Time (ns) | 380 |
| Maximum Operating Supply Voltage (V) | 15 |
| Minimum Operating Supply Voltage (V) | 3 |
| Number of Output Enables per Element | 0 |
| Typical Operating Supply Voltage (V) | 3.3|5|9|12 |
| Maximum Low Level Output Current (mA) | 3.6(Min) |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -3.6 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 150@10V|110@15V|360@5V |
| Description |
