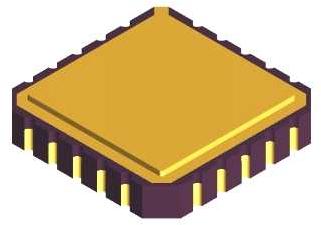

Decoders and Demuxes DM54LS138E/883
Texas Instruments
DM54LS138E/883
--
Standard and Specialty Logic
Decoders and Demuxes
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| Polarity | Inverting |
| ECCN (US) | EAR99 |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 20 |
| Part Status | Obsolete |
| Logic Family | LS |
| Package Width | 8.89 |
| Logic Function | Decoder/Demultiplexer |
| Package Height | 1.76 |
| Package Length | 8.89 |
| Supplier Package | CLLCC |
| Process Technology | Bipolar |
| Standard Package Name | LLCC |
| Number of Element Inputs | 3 |
| Demultiplexing Capability | 1-of-8 |
| Number of Element Outputs | 8 |
| Supplier Temperature Grade | Military |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (mA) | 6.3(Typ) |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Number of Input Enables per Element | 3 |
| Absolute Propagation Delay Time (ns) | 40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Number of Output Enables per Element | 0 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 4 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -0.4 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 40@5V |
| Description |
