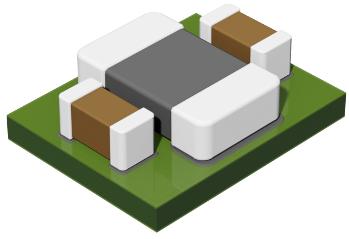

DC to DC Converter and Switching Regulator Module TPS82697SIPR
Texas Instruments
TPS82697SIPR
--
Power Supplies
DC to DC Converter and Switching Regulator Module
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| Type | Step Down |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Isolation | Non-Isolated |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Ball |
| Output Type | Fixed |
| PCB changed | 8 |
| Part Status | Active |
| On/Off Logic | Positive |
| Package Width | 2.35(Max) |
| Efficiency (%) | 95 |
| Package Height | 0.9(Max) |
| Package Length | 2.95(Max) |
| Line Regulation | 0.18%/V(Typ) |
| Load Regulation | -0.0002%/mA(Typ) |
| Supplier Package | uSIP |
| Input/Output Type | DC/DC |
| Number of Outputs | 1 |
| Output Current (A) | 0.5 |
| Output Voltage (V) | 2.8 |
| Switching Regulator | Yes |
| Standard Package Name | SIP |
| Maximum Input Voltage (V) | 4.8 |
| Minimum Input Voltage (V) | 2.3 |
| Switching Frequency (kHz) | 3000(Typ) |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
