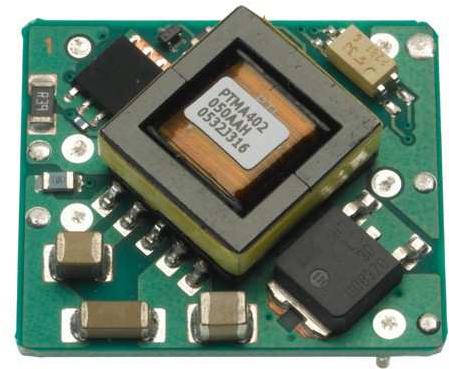

DC to DC Converter and Switching Regulator Module PTMA402050N2AD
Texas Instruments
PTMA402050N2AD
--
Power Supplies
DC to DC Converter and Switching Regulator Module
Specification
| Product Attribute | Attribute Value |
| HTS | 8504.40.95.80 |
| PPAP | No |
| Type | Step Down |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Isolation | Isolated |
| Packaging | Tray |
| Pin Count | 6 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Fixed |
| PCB changed | 6 |
| Part Status | NRND |
| On/Off Logic | Negative |
| Package Width | 24.38 |
| Efficiency (%) | 85(Typ) |
| Package Height | 8.25 |
| Package Length | 27.94 |
| Line Regulation | 5mV(Typ) |
| Load Regulation | 10mV(Typ) |
| Output Power (W) | 10 |
| Supplier Package | DIP Module |
| Input/Output Type | DC/DC |
| Number of Outputs | 1 |
| Output Current (A) | 2 |
| Output Voltage (V) | 5 |
| Product Weight (g) | 6.5 |
| Switching Regulator | Yes |
| Standard Package Name | DIM |
| Maximum Input Voltage (V) | 75 |
| Minimum Input Voltage (V) | 36 |
| Minimum Isolation Voltage | 1500VDC |
| Switching Frequency (kHz) | 350 |
| Typical Input Voltage (V) | 48 |
| Typical Standby Current (mA) | 8 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
