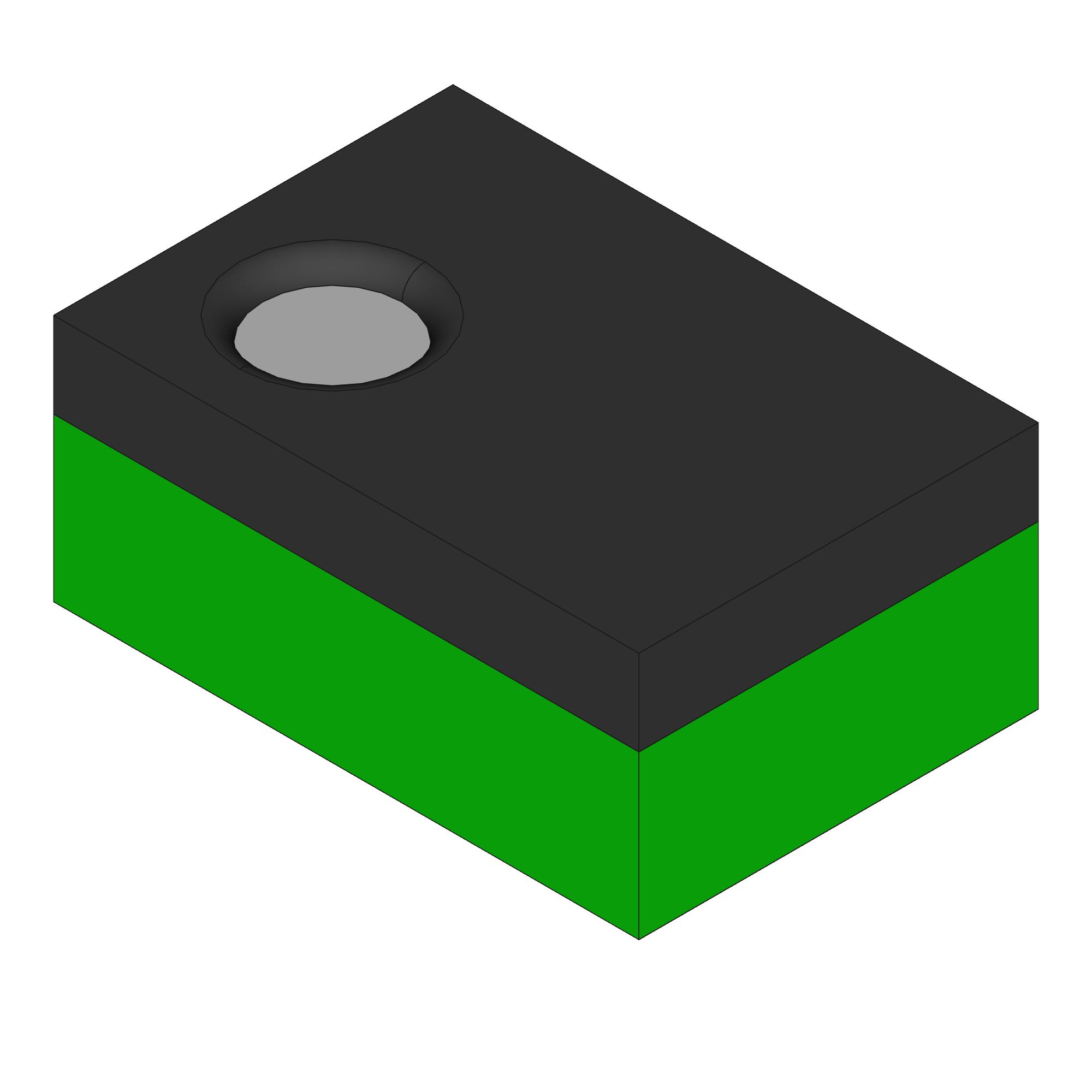

DC to DC Converter and Switching Regulator Module NTH0515MC
Murata
NTH0515MC
--
Power Supplies
DC to DC Converter and Switching Regulator Module
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Non-Inverting|Inverting|Step Up|Step Down |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Isolation | Isolated |
| Packaging | Tube |
| Pin Count | 12 |
| Automotive | No |
| Output Type | Fixed |
| PCB changed | 12 |
| Part Status | Obsolete |
| Package Width | 12.7 |
| Efficiency (%) | 84 |
| Package Height | 5.75(Max) |
| Package Length | 17.78 |
| Line Regulation | 1.2%/% |
| Load Regulation | 10% |
| Output Power (W) | 2 |
| Supplier Package | Mini-SMD |
| Input/Output Type | DC/DC |
| Number of Outputs | 2 |
| Output Current (A) | 0.067|-0.067 |
| Output Voltage (V) | 15|-15 |
| Product Weight (g) | 2.75 |
| Switching Regulator | Yes |
| Standard Package Name | SMD |
| Maximum Input Voltage (V) | 5.5 |
| Minimum Input Voltage (V) | 4.5 |
| Minimum Isolation Voltage | 1000VDC |
| Switching Frequency (kHz) | 95(Typ) |
| Typical Input Voltage (V) | 5 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
