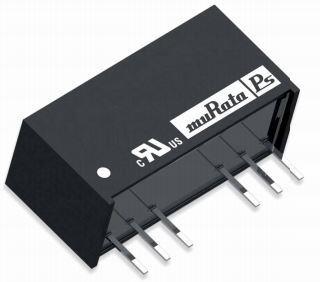

DC to DC Converter and Switching Regulator Module NCS3S1203SC
Murata
NCS3S1203SC
--
Power Supplies
DC to DC Converter and Switching Regulator Module
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Step Down |
| EU RoHS | Compliant with Exemption |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Isolation | Isolated |
| Pin Count | 6 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Fixed |
| PCB changed | 6 |
| Part Status | Active |
| Package Width | 9.45(Max) |
| Efficiency (%) | 77(Typ) |
| Package Height | 11.25(Max) |
| Package Length | 21.95(Max) |
| Line Regulation | 0.5% |
| Load Regulation | 1% |
| Output Power (W) | 2.31 |
| Supplier Package | SIP Module |
| Input/Output Type | DC/DC |
| Number of Outputs | 1 |
| Output Current (A) | 0.25 |
| Output Voltage (V) | 3.3 |
| Product Weight (g) | 4.4 |
| Switching Regulator | No |
| Maximum Input Voltage (V) | 36 |
| Minimum Input Voltage (V) | 9 |
| Minimum Isolation Voltage | 1500VDC |
| Switching Frequency (kHz) | 1200(Typ) |
| Typical Input Voltage (V) | 12 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
