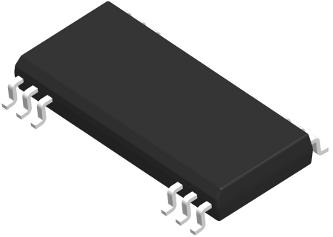

DC to DC Converter and Switching Regulator Module DCP021515U/1K
Texas Instruments
DCP021515U/1K
--
Power Supplies
DC to DC Converter and Switching Regulator Module
Specification
| Product Attribute | Attribute Value |
| HTS | 8504.40.95.80 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Isolation | Isolated |
| Packaging | Tape and Reel |
| Pin Count | 12 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Fixed |
| PCB changed | 12 |
| Part Status | Active |
| On/Off Logic | Positive |
| Package Width | 10.33 |
| Efficiency (%) | 88(Typ) |
| Package Height | 2.3 |
| Package Length | 17.9 |
| Line Regulation | 15% |
| Load Regulation | 20mV |
| Output Power (W) | 2 |
| Supplier Package | SOP |
| Input/Output Type | DC/DC |
| Number of Outputs | 1 |
| Output Current (A) | 0.133 |
| Output Voltage (V) | 15 |
| Process Technology | BiCMOS/DMOS |
| Switching Regulator | Yes |
| Standard Package Name | SOP |
| Maximum Input Voltage (V) | 16.5 |
| Minimum Input Voltage (V) | 13.5 |
| Minimum Isolation Voltage | 1000V |
| Switching Frequency (kHz) | 800(Typ) |
| Typical Input Voltage (V) | 15 |
| Typical Standby Current (mA) | 3 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
