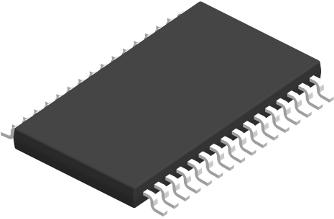

DC to DC Converter and Switching Regulator Chip TPS563900DAP
Texas Instruments
TPS563900DAP
--
Power Management
DC to DC Converter and Switching Regulator Chip
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| Type | Synchronous Step Down |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 32 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Adjustable |
| PCB changed | 32 |
| Part Status | Active |
| Package Width | 6.2(Max) |
| Package Height | 1.05(Max) |
| Package Length | 11.1(Max) |
| Line Regulation | 0.5%/V |
| Load Regulation | 0.5%/A |
| Supplier Package | HTSSOP EP |
| Number of Outputs | 2 |
| Output Voltage (V) | 0.68 to 1.95 |
| Switching Regulator | Yes |
| Standard Package Name | SOP |
| Maximum Input Voltage (V) | 18 |
| Minimum Input Voltage (V) | 4.5 |
| Switching Frequency (kHz) | 1600 |
| Maximum Output Current (A) | 3.5 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
