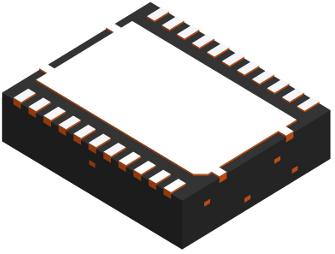

DC to DC Converter and Switching Regulator Chip TPS53318DQPT
Texas Instruments
TPS53318DQPT
--
Power Management
DC to DC Converter and Switching Regulator Chip
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| SVHC | Yes |
| Type | Synchronous Step Down |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 22 |
| Automotive | No |
| Output Type | Adjustable |
| PCB changed | 22 |
| Part Status | Active |
| Package Width | 5.1(Max) |
| Efficiency (%) | 91 |
| Package Height | 1.45(Max) |
| Package Length | 6.1(Max) |
| Supplier Package | LSON-CLIP EP |
| Number of Outputs | 1 |
| Output Voltage (V) | 0.6 to 5.5 |
| Switching Regulator | Yes |
| SVHC Exceeds Threshold | Yes |
| Maximum Input Voltage (V) | 22 |
| Minimum Input Voltage (V) | 1.5 |
| Switching Frequency (kHz) | 250 to 1000 |
| Maximum Output Current (A) | 8 |
| Operating Supply Voltage (V) | 4.5 to 25 |
| Typical Quiescent Current (uA) | 320 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
