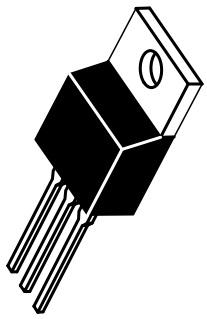

DC to DC Converter and Switching Regulator Chip MC34166TG
onsemi
MC34166TG
--
Power Management
DC to DC Converter and Switching Regulator Chip
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| Tab | Tab |
| PPAP | No |
| SVHC | Yes |
| Type | Non-Inverting|Inverting|Step Up|Step Down |
| EU RoHS | Compliant with Exemption |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 5 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Fixed |
| PCB changed | 5 |
| Part Status | NRND |
| Package Width | 4.57(Max) |
| Efficiency (%) | 83.8 |
| Package Height | 9.27(Max) |
| Package Length | 10.54(Max) |
| Line Regulation | 3mV|23mV|5mV |
| Load Regulation | 4mV|3mV|2mV |
| Supplier Package | TO-220 |
| Number of Outputs | 1 |
| Output Voltage (V) | 5.05 |
| Switching Regulator | Yes |
| Standard Package Name | TO-220 |
| SVHC Exceeds Threshold | Yes |
| Maximum Input Voltage (V) | 40 |
| Minimum Input Voltage (V) | 7.5 |
| Switching Frequency (kHz) | 79 |
| Maximum Output Current (A) | 3 |
| Operating Supply Voltage (V) | 7.5 to 40 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Description |
