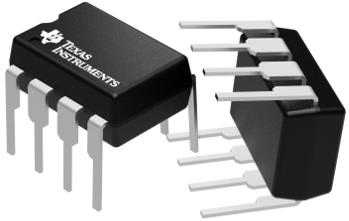

DC to DC Converter and Switching Regulator Chip LM2674N-12/NOPB
Texas Instruments
LM2674N-12/NOPB
--
Power Management
DC to DC Converter and Switching Regulator Chip
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Step Down |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Fixed |
| PCB changed | 8 |
| Part Status | Obsolete |
| Package Width | 6.6(Max) |
| Efficiency (%) | 94(Typ) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 10.16(Max) |
| Supplier Package | PDIP |
| Number of Outputs | 1 |
| Output Voltage (V) | 12 |
| Switching Regulator | Yes |
| Standard Package Name | DIP |
| Maximum Input Voltage (V) | 40 |
| Minimum Input Voltage (V) | 8 |
| Switching Frequency (kHz) | 275 |
| Maximum Output Current (A) | 0.5 |
| Operating Supply Voltage (V) | 6.5 to 40 |
| Typical Quiescent Current (uA) | 2500 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
