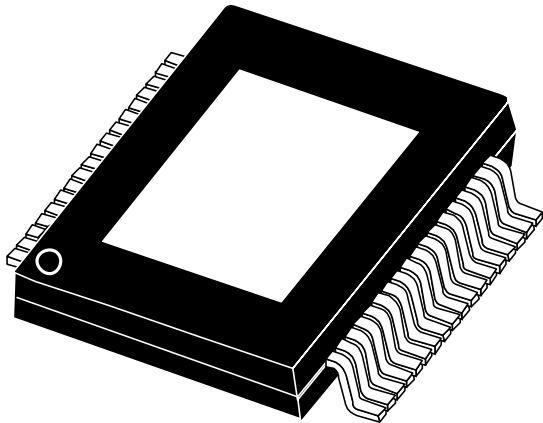

DC to DC Converter and Switching Regulator Chip L5963U-KBX
STMicroelectronics
L5963U-KBX
--
Power Management
DC to DC Converter and Switching Regulator Chip
Specification
| Product Attribute | Attribute Value |
| PPAP | Unknown |
| SVHC | Yes |
| Type | Synchronous Step Down |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 36 |
| Automotive | Yes |
| Lead Shape | Gull-wing |
| Output Type | Adjustable |
| PCB changed | 36 |
| Part Status | Active |
| Package Width | 7.5 |
| Efficiency (%) | 93(Typ) |
| Package Height | 2.35(Max) |
| Package Length | 10.3 |
| Line Regulation | 1mV(Typ) |
| Load Regulation | 1mV(Typ) |
| Supplier Package | PowerSSO EP |
| Number of Outputs | 2 |
| Output Voltage (V) | 1(Min) |
| Switching Regulator | Yes |
| SVHC Exceeds Threshold | Yes |
| Maximum Input Voltage (V) | 26 |
| Minimum Input Voltage (V) | 3.5 |
| Switching Frequency (kHz) | 250 to 2000 |
| Maximum Output Current (A) | 3 |
| Typical Quiescent Current (uA) | 23 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
