DC to DC Converter and Switching Regulator Chip FAN53601AUC10X
onsemi
FAN53601AUC10X
--
Power Management
DC to DC Converter and Switching Regulator Chip
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.31.00.01 |
| PPAP | No |
| Type | Synchronous Step Down |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 6 |
| Automotive | No |
| Lead Shape | Ball |
| Output Type | Fixed |
| PCB changed | 6 |
| Part Status | Active |
| Package Width | 0.86 |
| Efficiency (%) | 92 |
| Package Height | 0.38 |
| Package Length | 1.16 |

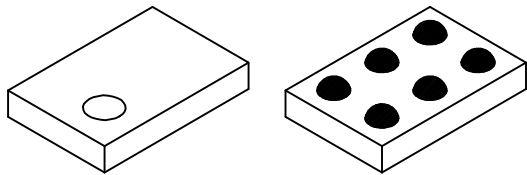

| Supplier Package | WLCSP |
| Number of Outputs | 1 |
| Output Voltage (V) | 1 |
| Switching Regulator | Yes |
| Maximum Input Voltage (V) | 5.5 |
| Minimum Input Voltage (V) | 2.3 |
| Switching Frequency (kHz) | 6600 |
| Maximum Output Current (A) | 0.6 |
| Typical Switch Current (A) | 1.1 |
| Operating Supply Voltage (V) | 2.3 to 5.5 |
| Typical Quiescent Current (uA) | 24 |
| Typical Output Resistance (Ohm) | 230 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
