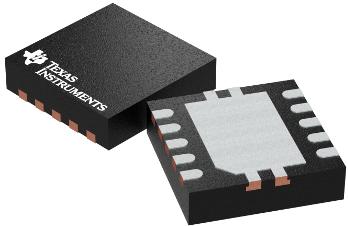

DC to DC Controllers TPS40193DRCR
Texas Instruments
TPS40193DRCR
--
Processors&Controllers
DC to DC Controllers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Topology | Step Down |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 10 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 10 |
| Part Status | Active |
| Package Width | 3.1(Max) |
| Control Method | PWM |
| Package Height | 0.95(Max) |
| Package Length | 3.1(Max) |
| Programmability | No |
| Supplier Package | VSON EP |
| Number of Outputs | 1 |
| Synchronous Clock | Yes |
| Output Voltage (V) | 0.591 to 14.4 |
| Standard Package Name | SON |
| Synchronous Rectifier | Yes |
| Maximum Input Voltage (V) | 18 |
| Minimum Input Voltage (V) | 4.5 |
| Maximum Output Current (A) | 20 |
| Operating Supply Voltage (V) | 4.5 to 18 |
| Typical Quiescent Current (mA) | 2.5 |
| Maximum Switching Frequency (kHz) | 360 |
| Minimum Switching Frequency (kHz) | 240 |
| Typical Switching Frequency (kHz) | 300 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Typical Gate Driver Pull Up Resistance (Ohm) | 2.5/3 |
| Typical Gate Driver Pull Down Resistance (Ohm) | 0.8/1.5 |
| Description |
