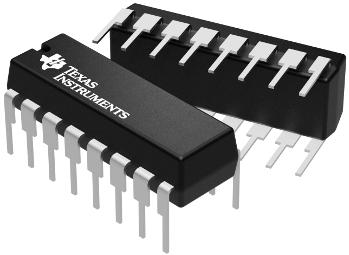

DC to DC Controllers TL1454ACNE4
Texas Instruments
TL1454ACNE4
--
Processors&Controllers
DC to DC Controllers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 16 |
| Part Status | Obsolete |
| Package Width | 6.6(Max) |
| Control Method | PWM |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 19.69(Max) |
| Supplier Package | PDIP |
| Number of Outputs | 2 |
| Output Voltage (V) | 20(Max) |
| Standard Package Name | DIP |
| Maximum Input Voltage (V) | 20 |
| Minimum Input Voltage (V) | 3.6 |
| Maximum Supply Current (mA) | 7 |
| Operating Supply Voltage (V) | 3.6 to 20 |
| Maximum Power Dissipation (mW) | 1250 |
| Maximum Switching Frequency (kHz) | 2000 |
| Minimum Switching Frequency (kHz) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -20 |
| Description |
