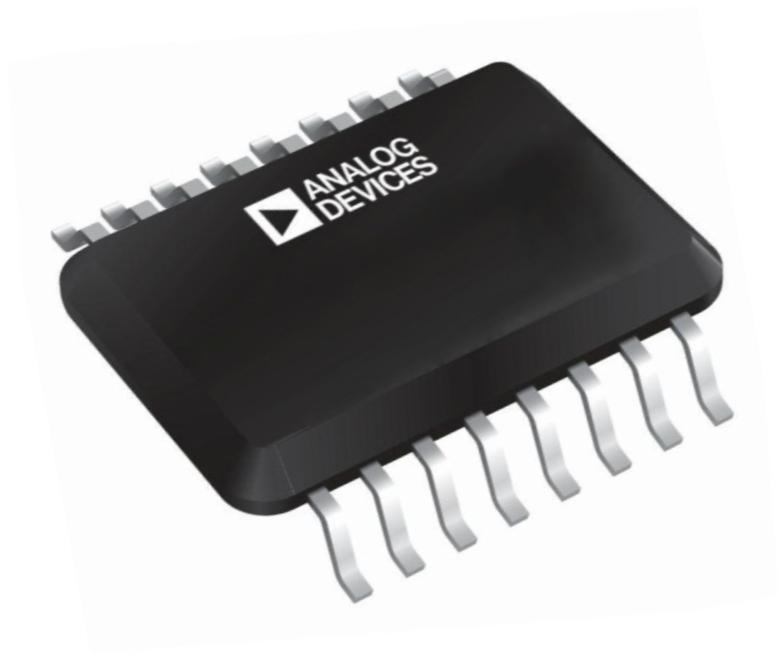

LTC7804EMSE#WPBF
LTC7804EMSE#WPBF
DC to DC Controllers LTC7804EMSE#WPBF
ADI
LTC7804EMSE#WPBF
--
Processors&Controllers
DC to DC Controllers
Specification
Product AttributeAttribute Value
PPAPUnknown
EU RoHSCompliant
MountingSurface Mount
TopologyStep Up
ECCN (US)EAR99
PackagingTube
Pin Count16
AutomotiveYes
Lead ShapeGull-wing
PCB changed16
Part StatusActive
Package Width3
Package Height0.86
Package Length4.04
ProgrammabilityYes
Supplier PackageMSOP EP
Number of Outputs1
Synchronous ClockNo
Output Voltage (V)40(Max)
Synchronous RectifierYes
Maximum Input Voltage (V)40
Minimum Input Voltage (V)4.5
Supplier Temperature GradeExtended
Operating Supply Voltage (V)4.5 to 40
Maximum Switching Frequency (kHz)3000
Minimum Switching Frequency (kHz)100
Typical Switching Frequency (kHz)2250
Maximum Operating Temperature (°C)125
Minimum Operating Temperature (°C)-40
Description
The LTC7804 is a 40 V, Low IQ, 3 MHz synchronous boost controller can deliver up to 10A with 97% efficiency, which reduces power loss, increases efficiency, and minimizes board space.
