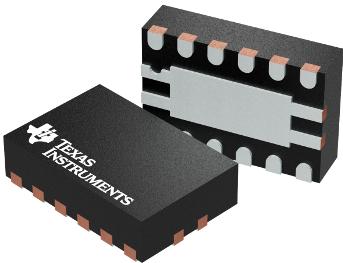

DC to DC Controllers LM5156DSSR
Texas Instruments
LM5156DSSR
--
Processors&Controllers
DC to DC Controllers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Topology | SEPIC|Step Up|Flyback |
| ECCN (US) | EAR99 |
| Pin Count | 12 |
| Automotive | No |
| PCB changed | 12 |
| Part Status | Active |
| Package Width | 2.1(Max) |
| Package Height | 0.75(Max) |
| Package Length | 3.1(Max) |
| Supplier Package | WSON EP |
| Number of Outputs | 1 |
| Output Voltage (V) | 1.5 to 300 |
| Standard Package Name | SON |
| Maximum Input Voltage (V) | 60 |
| Minimum Input Voltage (V) | 1.5 |
| Maximum Supply Current (mA) | 0.49(Typ) |
| Operating Supply Voltage (V) | 2.97 to 60 |
| Maximum Switching Frequency (kHz) | 2200 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
