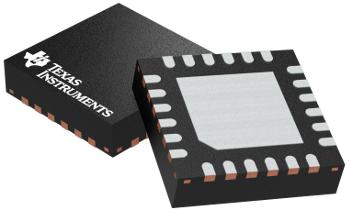

DC to DC Controllers LM25141QRGETQ1
Texas Instruments
LM25141QRGETQ1
--
Processors&Controllers
DC to DC Controllers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Topology | Step Down |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 24 |
| Automotive | Yes |
| Lead Shape | No Lead |
| PCB changed | 24 |
| Part Status | Active |
| Package Width | 4.15(Max) |
| Control Method | PWM |
| Package Height | 0.95(Max) |
| Package Length | 4.15(Max) |
| Programmability | Yes |
| Supplier Package | VQFN EP |
| Number of Outputs | 1 |
| Synchronous Clock | Yes |
| Output Voltage (V) | 1.5 to 15 |
| Standard Package Name | QFN |
| Synchronous Rectifier | Yes |
| Maximum Input Voltage (V) | 42 |
| Minimum Input Voltage (V) | 3.8 |
| Maximum Output Current (A) | 20 |
| Supplier Temperature Grade | Automotive |
| Operating Supply Voltage (V) | 3.8 to 42 |
| Typical Quiescent Current (mA) | 0.003 |
| Maximum Switching Frequency (kHz) | 2300 |
| Minimum Switching Frequency (kHz) | 2100 |
| Typical Switching Frequency (kHz) | 2200 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
Related products
Inquiry Price
In Stock:
