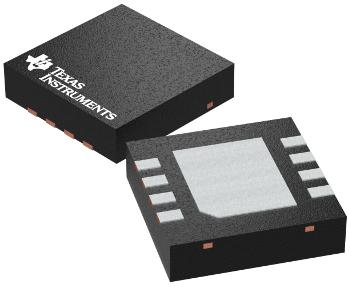

DC to DC Controllers LM25085ASDE/NOPB
Texas Instruments
LM25085ASDE/NOPB
--
Processors&Controllers
DC to DC Controllers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Topology | Step Down |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 3 |
| Package Height | 0.8(Max) |
| Package Length | 3 |
| Programmability | Yes |
| Supplier Package | WSON EP |
| Number of Outputs | 1 |
| Synchronous Clock | No |
| Output Voltage (V) | 0.9 to 42 |
| Standard Package Name | SON |
| Synchronous Rectifier | No |
| Maximum Input Voltage (V) | 42 |
| Minimum Input Voltage (V) | 4.5 |
| Maximum Output Current (A) | 10 |
| Maximum Supply Current (mA) | 1.25(Typ) |
| Operating Supply Voltage (V) | 4.5 to 42 |
| Typical Quiescent Current (mA) | 1.25 |
| Maximum Switching Frequency (kHz) | 1000 |
| Minimum Switching Frequency (kHz) | 50 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Typical Gate Driver Pull Up Resistance (Ohm) | 2.3 |
| Typical Gate Driver Pull Down Resistance (Ohm) | 2.3 |
| Description |
