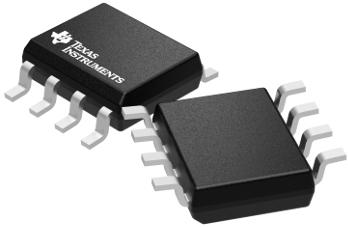

Current Mode PWM Controllers UCC25600DRG4
Texas Instruments
UCC25600DRG4
--
Power Management
Current Mode PWM Controllers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Resonant Controllers |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Topology | Half Bridge |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| On/Off Pin | Yes |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 3.98(Max) |
| Control Method | Resonant Controllers |
| Fall Time (ns) | 12 |
| Package Height | 1.5(Max) |
| Package Length | 5(Max) |
| Rise Time (ns) | 18 |
| Synchronous Pin | No |
| Supplier Package | SOIC |
| Adjustable Output | No |
| Number of PWM Outputs | 1 |
| Standard Package Name | SOP |
| Maximum Duty Cycle (%) | 50 |
| Switching Frequency (kHz) | 400 |
| UVLO Turn-On Threshold (V) | 10.5 |
| Maximum Supply Current (mA) | 7.5 |
| UVLO Turn-Off Threshold (V) | 9.5 |
| Operating Supply Voltage (V) | 11.5 to 18 |
| Maximum Power Dissipation (mW) | 667 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 18 |
| Minimum Operating Supply Voltage (V) | 11.5 |
