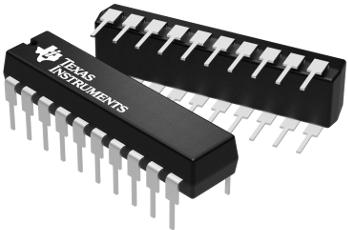

Current Mode PWM Controllers UC3876N
Texas Instruments
UC3876N
--
Power Management
Current Mode PWM Controllers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| Type | Resonant Controllers |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| Topology | Full-Bridge |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 20 |
| Part Status | Active |
| Package Width | 6.6(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 26.92(Max) |
| Synchronous Pin | Yes |
| Supplier Package | PDIP |
| Adjustable Output | No |
| Output Current (mA) | 500(Max) |
| Number of PWM Outputs | 4 |
| Standard Package Name | DIP |
| Maximum Duty Cycle (%) | 100 |
| Switching Frequency (kHz) | 1000 |
| Maximum Supply Current (mA) | 44 |
| Operating Supply Voltage (V) | 15.25 to 20 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | 20 |
| Minimum Operating Supply Voltage (V) | 15.25 |
| Description |
