Current Mode PWM Controllers UC3843D
STMicroelectronics

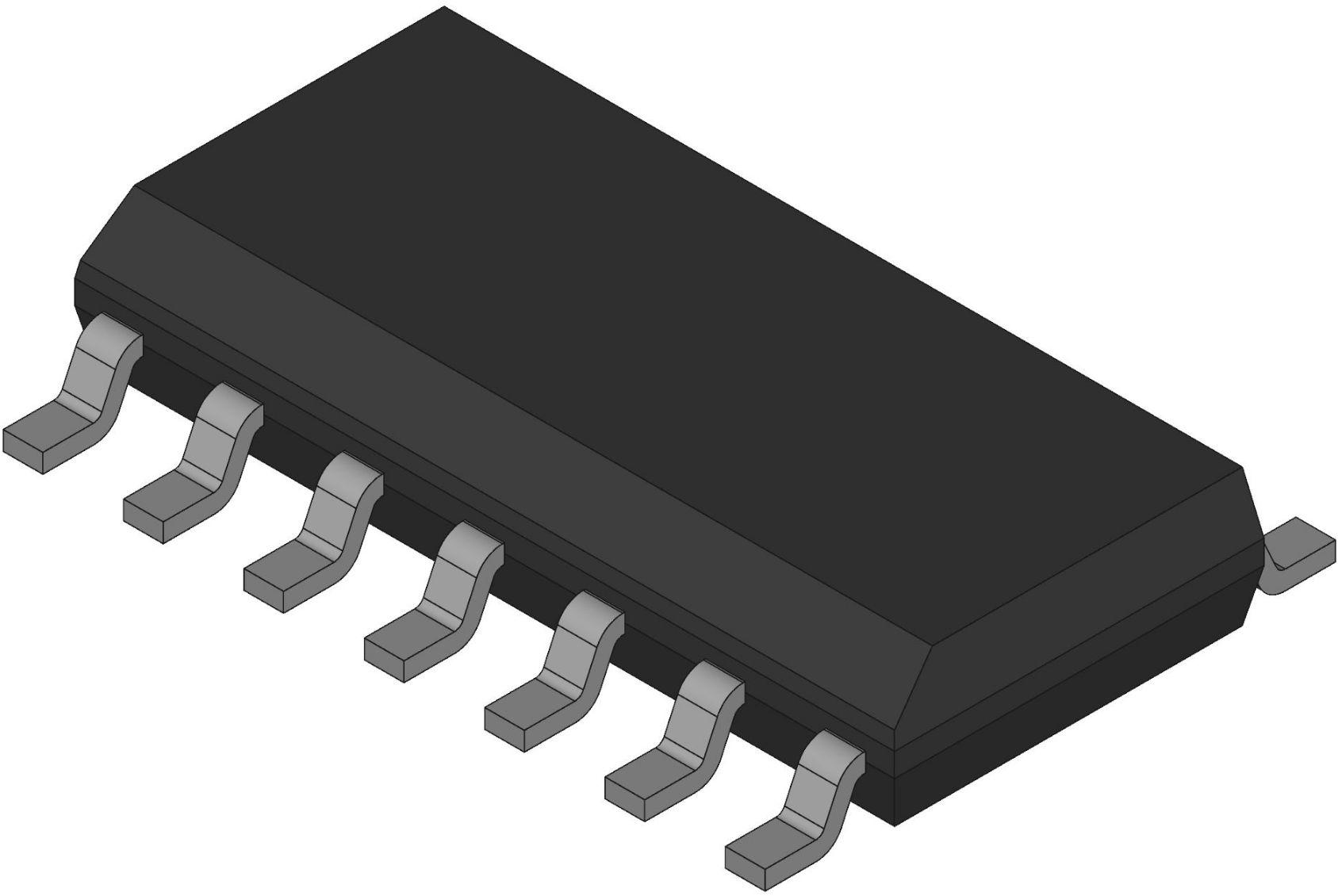

UC3843D
--
Power Management
Current Mode PWM Controllers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Current Mode PWM Controller |
| EU RoHS | Supplier Unconfirmed |
| Mounting | Surface Mount |
| Topology | Flyback |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| On/Off Pin | No |
| PCB changed | 14 |
| Part Status | Obsolete |
| Package Width | 4(Max) |
| Control Method | Current Mode PWM Controller |
| Fall Time (ns) | 50 |
| Package Height | 1.65(Max) |
| Package Length | 8.75(Max) |
| Rise Time (ns) | 50 |
| Synchronous Pin | No |
| Supplier Package | SOIC |
| Adjustable Output | No |
| Output Current (mA) | 1000(Max) |
| Number of PWM Outputs | 1 |
| Standard Package Name | SOP |
| Maximum Duty Cycle (%) | 100 |
| Oscillator Accuracy (kHz) | 52 |
| Switching Frequency (kHz) | 500 |
| Maximum Supply Current (mA) | 20 |
| Maximum Power Dissipation (mW) | 725 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | 30 |
