Current Mode PWM Controllers UC2526J
Texas Instruments

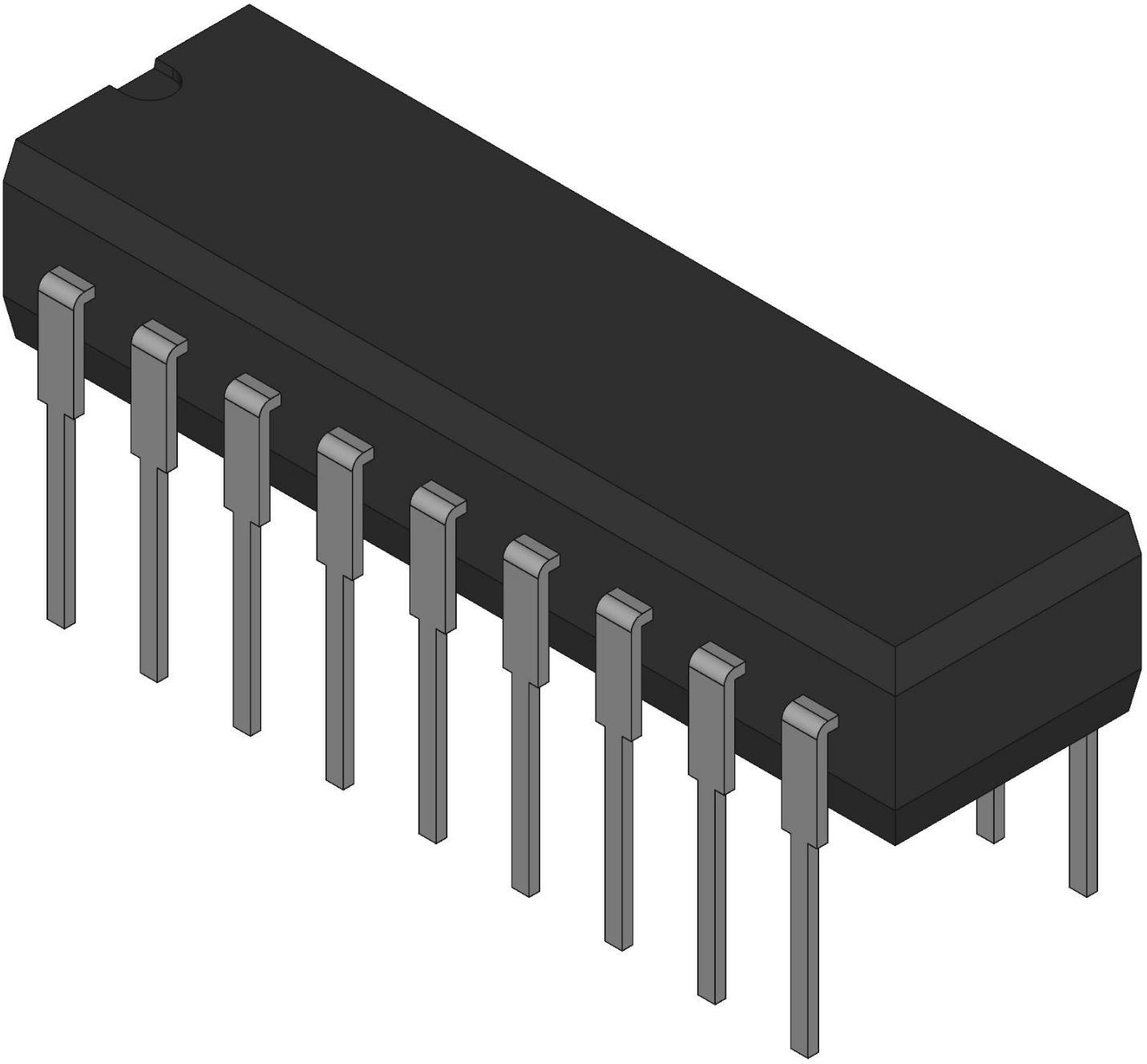

UC2526J
--
Power Management
Current Mode PWM Controllers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Voltage Mode PWM Controller |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| Topology | Full-Bridge|Half-Bridge|Push-Pull|Boost|Flyback|Forward |
| ECCN (US) | EAR99 |
| Pin Count | 18 |
| Automotive | No |
| Lead Shape | Through Hole |
| On/Off Pin | No |
| PCB changed | 18 |
| Part Status | Obsolete |
| Package Width | 7.87(Max) |
| Control Method | Voltage Mode PWM Controller |
| Fall Time (ns) | 100 |
| Package Height | 3.56(Max) |
| Package Length | 24.38(Max) |
| Rise Time (ns) | 300 |
| Synchronous Pin | Yes |
| Supplier Package | CDIP |
| Adjustable Output | No |
| Output Current (mA) | 100 |
| Number of PWM Outputs | 2 |
| Standard Package Name | DIP |
| Maximum Duty Cycle (%) | 49(Typ) |
| Switching Frequency (kHz) | 550 |
| Maximum Power Dissipation (mW) | 1000 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -25 |
| Maximum Operating Supply Voltage (V) | 35 |
| Minimum Operating Supply Voltage (V) | 4.5 |
