Current Mode PWM Controllers SG3524NSG4
Texas Instruments

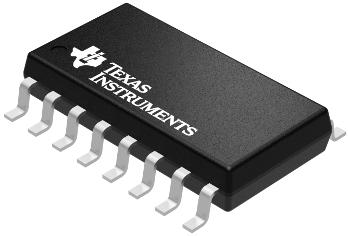

SG3524NSG4
--
Power Management
Current Mode PWM Controllers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| Type | Voltage Mode PWM Controller |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Topology | Boost|Buck|Flyback|Forward|Full-Bridge|Half-Bridge|Push-Pull |
| ECCN (US) | EAR99 |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Gull-wing |
| On/Off Pin | Yes |
| PCB changed | 16 |
| Part Status | Obsolete |
| Package Width | 5.6(Max) |
| Control Method | Voltage |
| Fall Time (ns) | 100 |
| Package Height | 1.85(Max) |
| Package Length | 10.5(Max) |
| Rise Time (ns) | 200 |
| Synchronous Pin | No |
| Supplier Package | SOP |
| Adjustable Output | No |
| Output Current (mA) | 100(Max) |
| Number of PWM Outputs | 2 |
| Standard Package Name | SOP |
| Maximum Duty Cycle (%) | 45(Min) |
| Switching Frequency (kHz) | 450(Typ) |
| Supplier Temperature Grade | Commercial |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | 40 |
| Minimum Operating Supply Voltage (V) | 8 |
