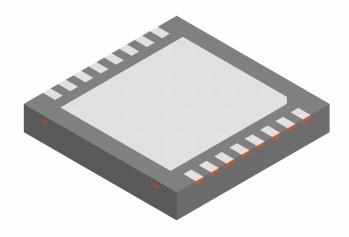

LM5041SDX/NOPB
LM5041SDX/NOPB
Current Mode PWM Controllers LM5041SDX/NOPB
Texas Instruments
LM5041SDX/NOPB
--
Power Management
Current Mode PWM Controllers
Specification
Product AttributeAttribute Value
HTS8542330001
PPAPNo
TypeCurrent Mode PWM Controller
EU RoHSCompliant
MountingSurface Mount
TopologyBuck|Boost|Half-Bridge|Push-Pull
ECCN (US)EAR99
PackagingTape and Reel
Pin Count16
AutomotiveNo
Lead ShapeNo Lead
On/Off PinYes
PCB changed16
Part StatusActive
Package Width5
Control MethodCurrent Mode PWM Controller
Fall Time (ns)20
Package Height0.8(Max)
Package Length5
Rise Time (ns)20
Synchronous PinYes
Supplier PackageWSON EP
Adjustable OutputYes
Output Current (mA)1500
Number of PWM Outputs1
Standard Package NameSON
Maximum Duty Cycle (%)50(Typ)
Switching Frequency (kHz)600(Typ)
Maximum Supply Current (mA)3(Typ)
Operating Supply Voltage (V)9
Maximum Operating Temperature (°C)125
Minimum Operating Temperature (°C)-40
Maximum Operating Supply Voltage (V)9.3
Minimum Operating Supply Voltage (V)8.7
Typical Operating Supply Voltage (V)9
Description
Current Mode PWM Controller 1.5A 600kHz 16-Pin WSON EP T/R
