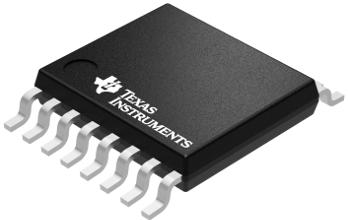

Current Mode PWM Controllers LM5037MT/NOPB
Texas Instruments
LM5037MT/NOPB
--
Power Management
Current Mode PWM Controllers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Voltage Mode PWM Controller |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Topology | Flyback|Forward |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Gull-wing |
| On/Off Pin | No |
| PCB changed | 16 |
| Part Status | Obsolete |
| Package Width | 4.5(Max) |
| Control Method | Voltage Mode PWM Controller |
| Fall Time (ns) | 13 |
| Package Height | 1.05(Max) |
| Package Length | 5.1(Max) |
| Rise Time (ns) | 15 |
| Synchronous Pin | No |
| Supplier Package | TSSOP |
| Adjustable Output | No |
| Output Current (mA) | 60 |
| Number of PWM Outputs | 2 |
| Standard Package Name | SOP |
| Switching Frequency (kHz) | 508(Typ) |
| Operating Supply Voltage (V) | 7.7 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 8 |
| Minimum Operating Supply Voltage (V) | 7.4 |
| Typical Operating Supply Voltage (V) | 7.7 |
| Description |
